The Brew City Marine systems are heavy duty low profile versatile pole mounts made for the Garmin Live Scope, Lowrance ActiveTarget and the Humminbird Mega Live and 360.
Brew City live sonar poles are the top choice among anglers because of the strength and versatility the systems offer. Paired with an extensive range of durable accessories like tracks, mounts, risers and more, Brew City allows any make and model of watercraft ready to run today’s modern electronics.
Shop for replacement parts and extra components to refit your Brew City system to other watercraft.

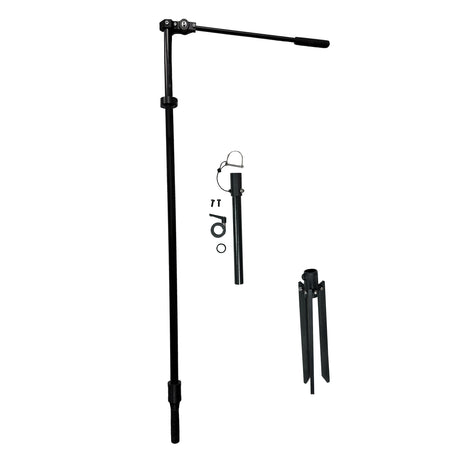

From open water to ice, Brew City has complete kits that compliment all major brands of Live Sonar and watercraft.

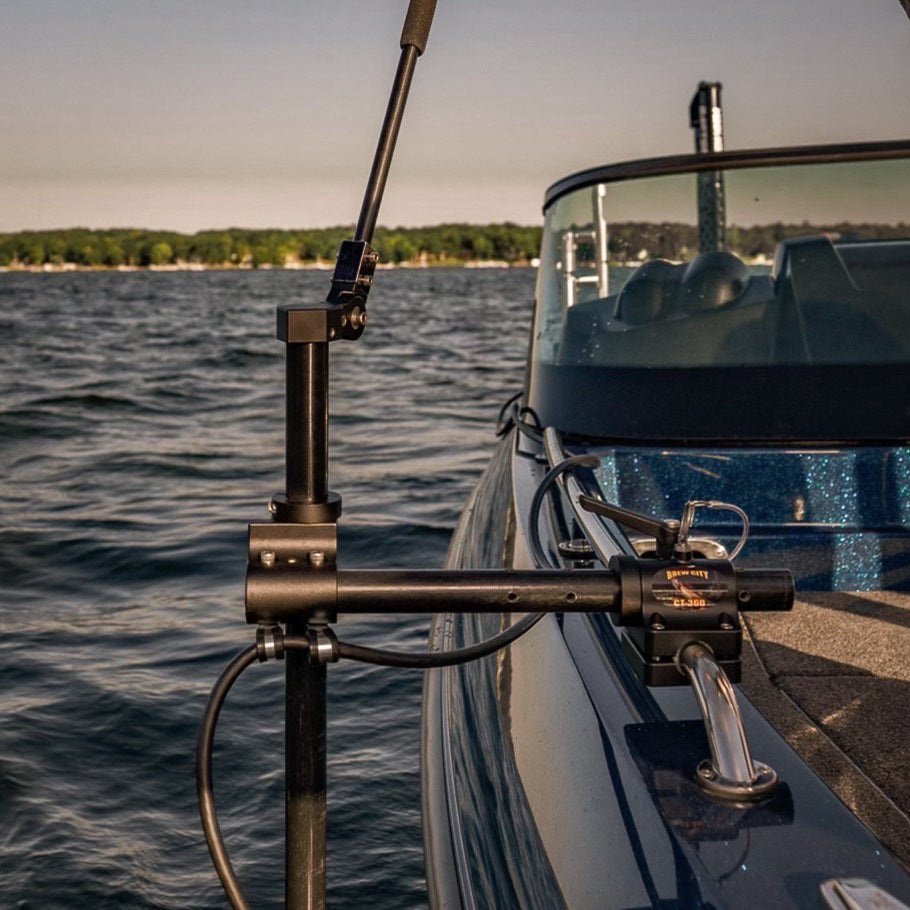

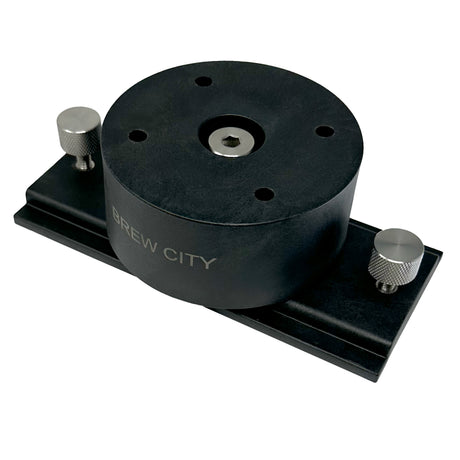

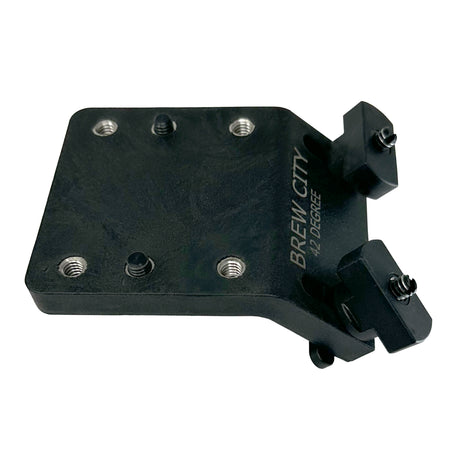

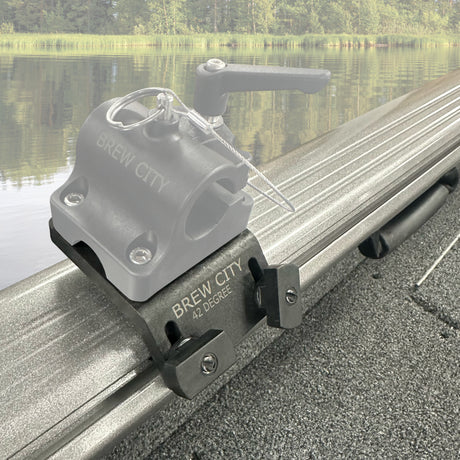

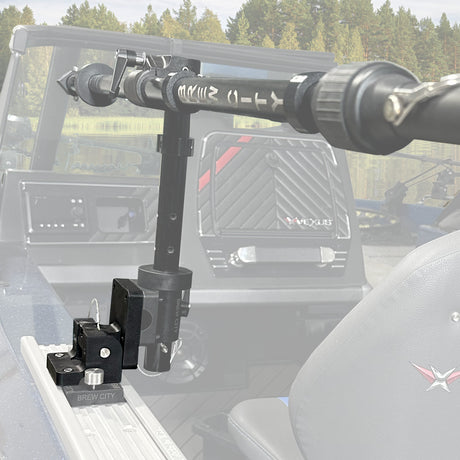

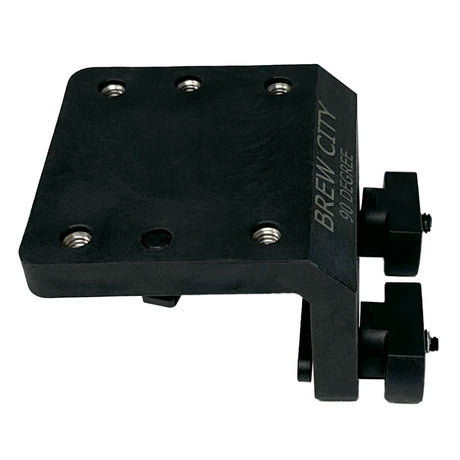

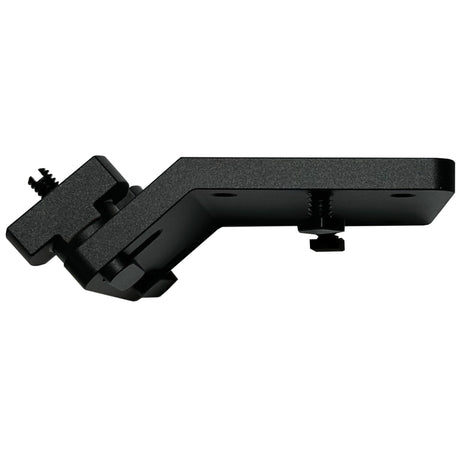

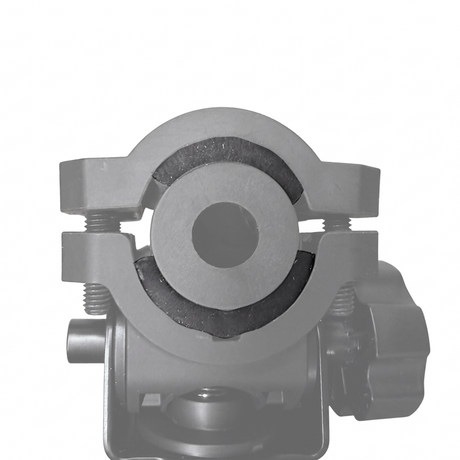

There are many mounting options to secure the Brew City pole to a boat. Options include mounting the Base on a 7/8" or 1" rail, a 3" track, rod holders, a riser for bass or Jon boats, 1 1/4" square rail pontoons and 42 or 90 degree sport track plates for integrated track systems (Lund, Tracker, Alumacraft and others) and there are still more options.

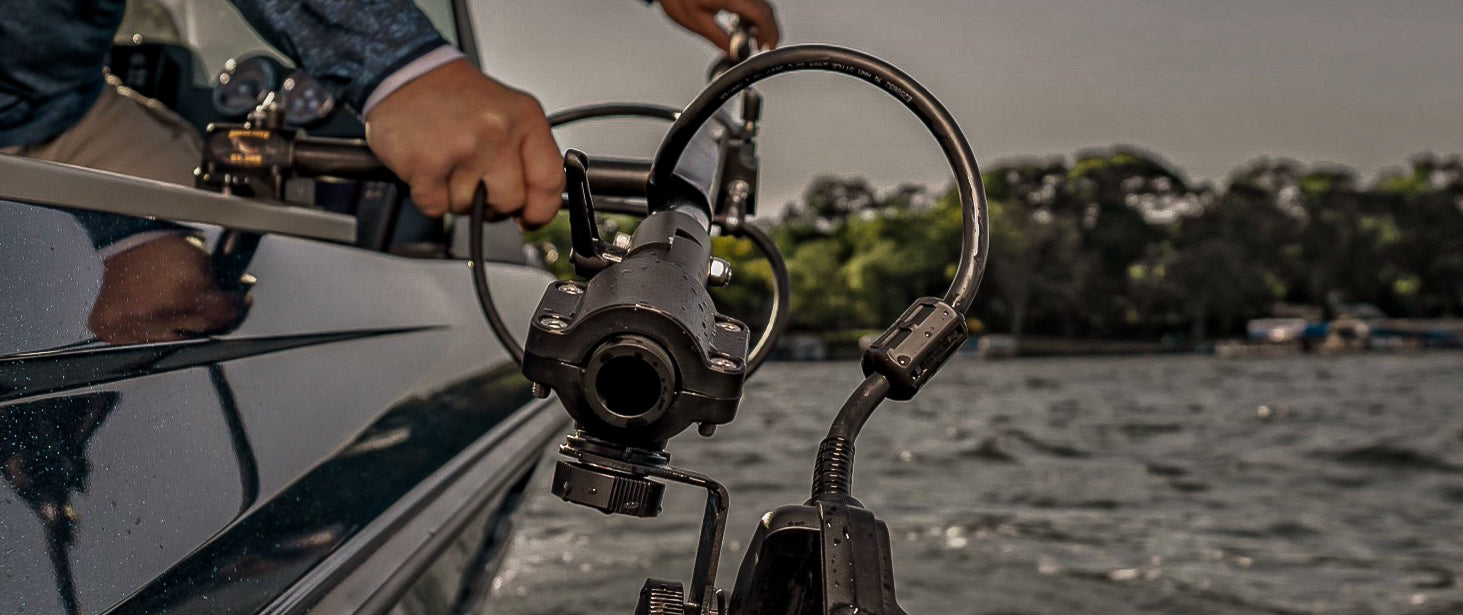

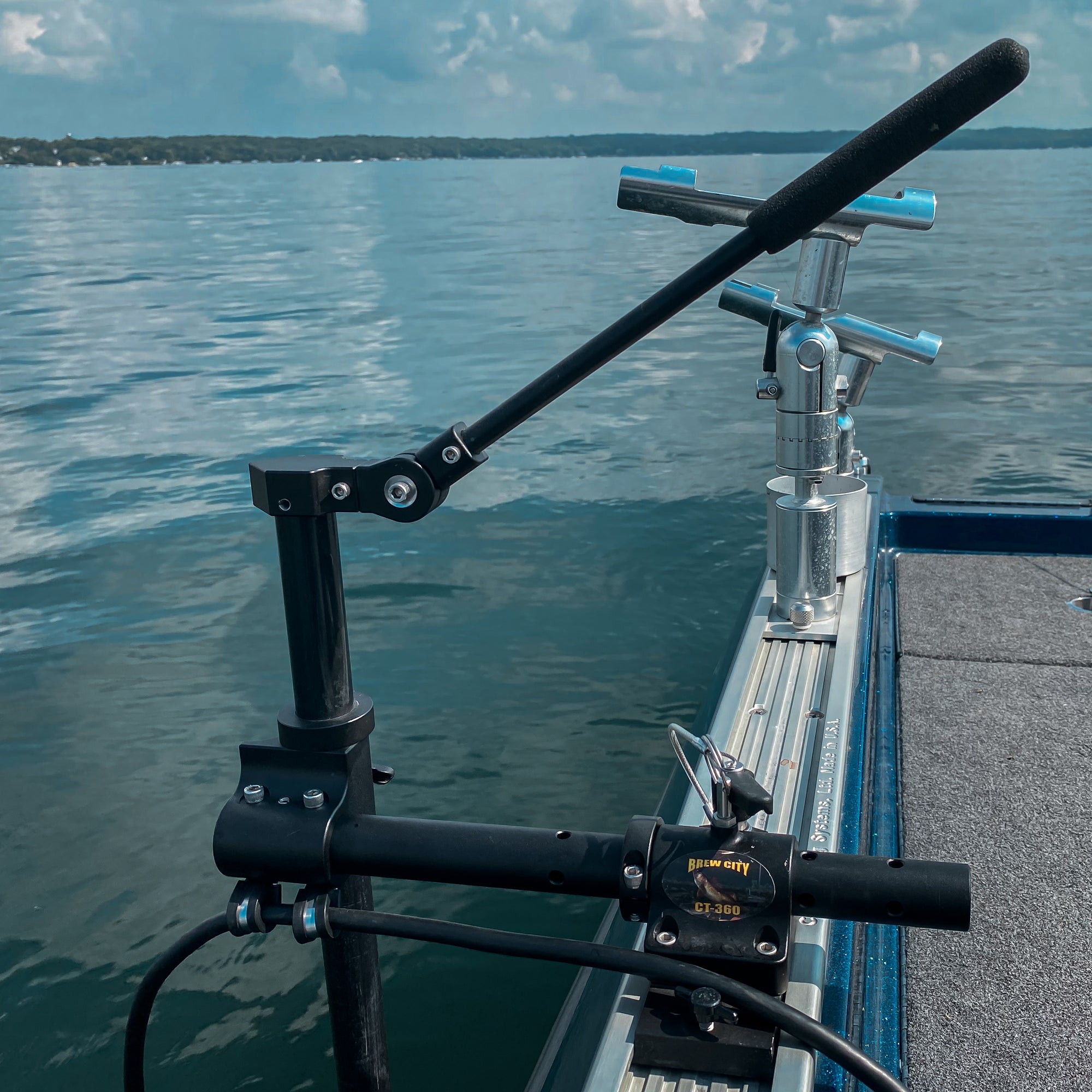

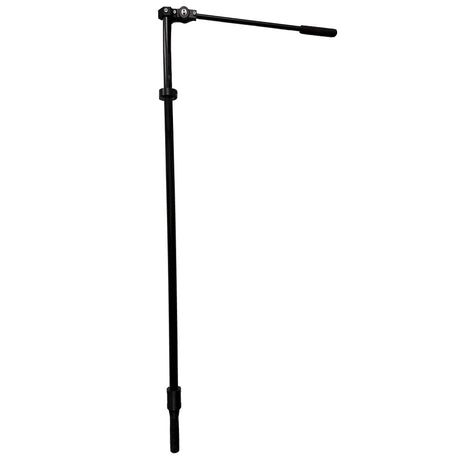

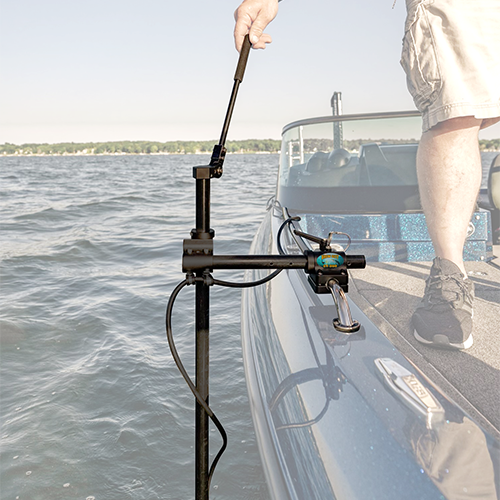

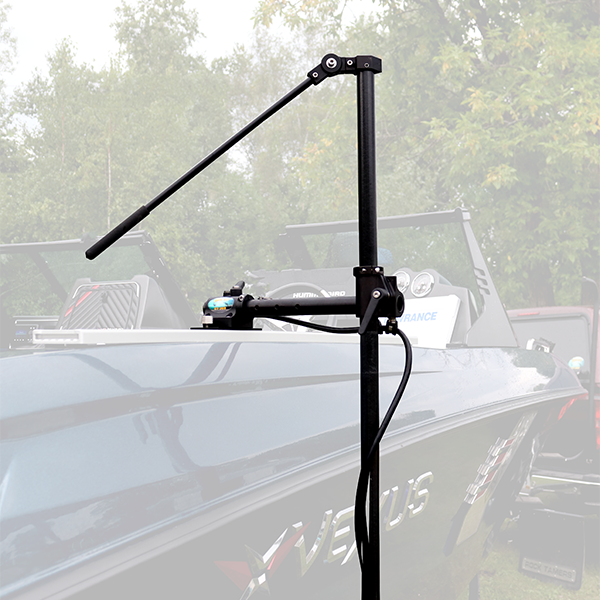

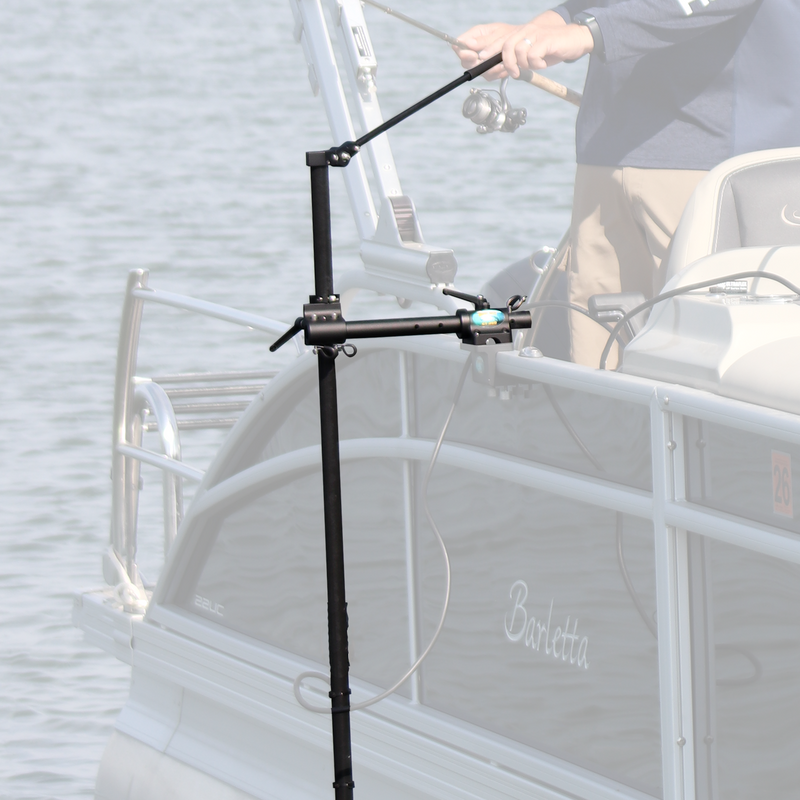

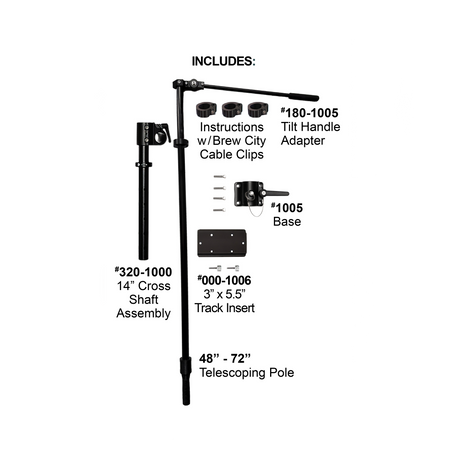

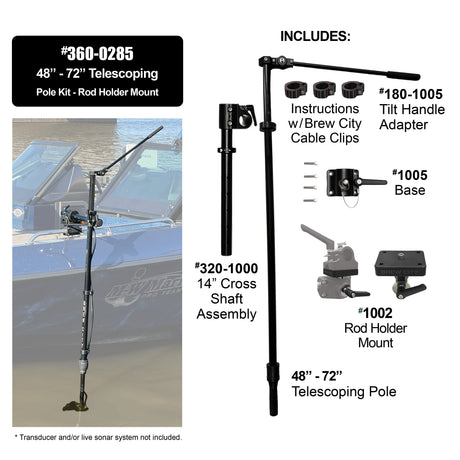

The 60" or 72" pole slides through a knuckle on the 14" aluminum Cross Shaft. The Cross Shaft slides into the Base and can rotate from the stowed position (horizontal) to the deployed position (vertical). To stow the pole, loosen the ratcheting handle and rotate to horizontal. Insert the stainless steel safety pin and re-tighten the ratcheting handle. To deploy, loosen the ratcheting handle, remove the safety pin and rotate to vertical. Once vertical, tighten the ratcheting handle fully. DO NOT use the safety pin when deployed, this will cause damage and is not covered under the manufacture warranty. The pole is designed to rotate up after about 6 mph (without the safety pin in).
The height of the transducer can be adjusted with the depth collar. The indicator arrow and 18” tilt handle with foam grip makes it easy to rotate the transducer in any direction. The knuckle has another ratcheting handle to tension the pole from spinning left and right while using it.

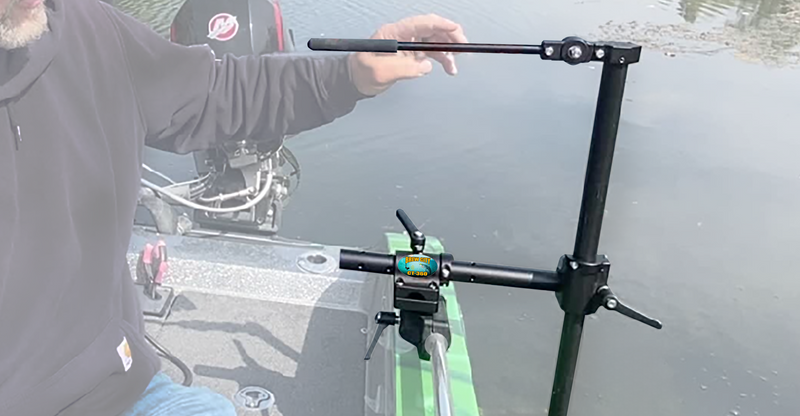

When traveling to your fishing spot, rotate the Brew City pole to a horizontal position by loosening the ratcheting handle on the base. Once rotated, push the safety pin into a hole in the cross shaft and then lock the mount down with a quick turn of the ratcheting handle.
The pole assembly can be slid into the base from the inside of boat for transportation on the road or when running in rough water or high speeds. The handle will fold down along side the shaft.

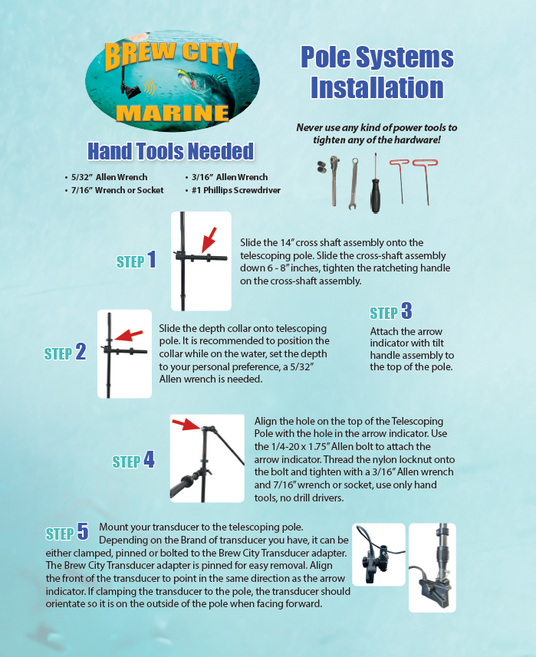

Download Installation Instructions
